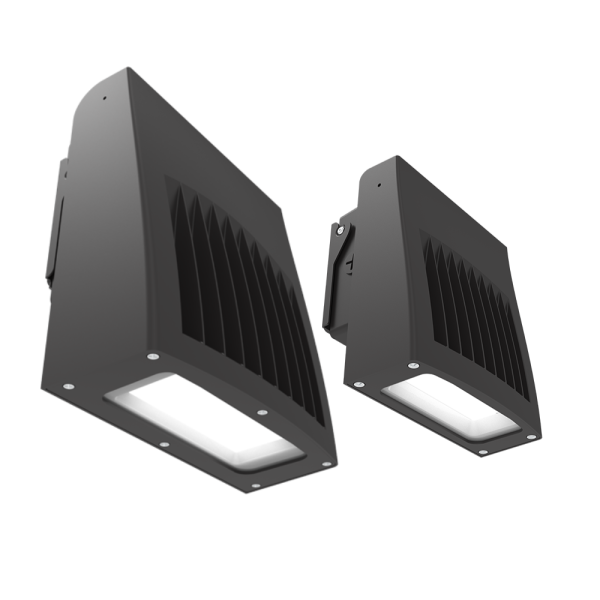

Slim Wall Pack (SWP)
SKU
Slim Wall Pack (SWP)
Features
- Low profile die-cast aluminum housing
- Bronze polyester powder coat finish (std.)
- Custom and factory select colors available¹
- Isolated optical compartment with tempered glass lens and silicone gaskets
- 90° adjustable Type IV distribution or Optional IDA fixed model2
- Quick mount bracket standard for easy surface mount installation
- Three ½" coin plugs on sides for conduit or electronic photocell
- 120–277V Universal Voltage or 277-480V High Voltage3
- Achieve code compliance with a fixed down PIR sensor with fully adjustable distribution aiming
- 0–10V Dimmable Driver (std.)
- Deep box 10W battery backup & cold weather battery options available¹
- Optional Field Adjustable Output device (FAO) allows individual luminaire lumen output control
- 3000K, 4000K & 5000K CCT Selectable via Integral selector
- >70 Color Rendering Index (CRI)
- Calculated L70 >100,000 hrs @ 25°C per TM-21-11
- IP65 Rated Luminaire
- Title 24
- 5 Year Warranty; 10 Year Optional Warranty
- Lumen Selectable only with FAO accessory
- ETL Listed for Wet Locations
- DesignLights Consortium® Premium Qualified Luminaire
¹ Contact factory for pricing and availability 2 Fixed 3000K CCT model only 3 277-480V available in 5L, 8L, 10L Lumen Packages Only
Applications- Pedestrian Walkways
- Storage Facilities
- Building Entrances
- Institutions
- Multi-use Facilities
- Schools
- Industrial Facilities
- Loading Docks
- Parking Lots
